MET-CDS

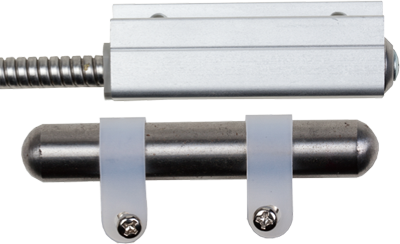

MET-CDSBi – Directional Curtain Door Switch W/Reversible Mounting Assembly

Contact Size: 2.68″L×.95″W×.54″H
(68mm×24.2mm×13.8mm)
Standard Magnet Size: 2.93″L×.5″W×.5″H
(74.5mm×12.6mm×12.6mm)
Standard Gap: 3.15″(80mm)
Colors: NA
36″(915mm) Armor Cable Available

  • PDF Document
  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part NumberGap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
MET-CDS3.15″(80)CLOSEDNormally
Open
10100AC110/DC1000.5

OPERATING TEMPERATURE:-40°C to +60°C

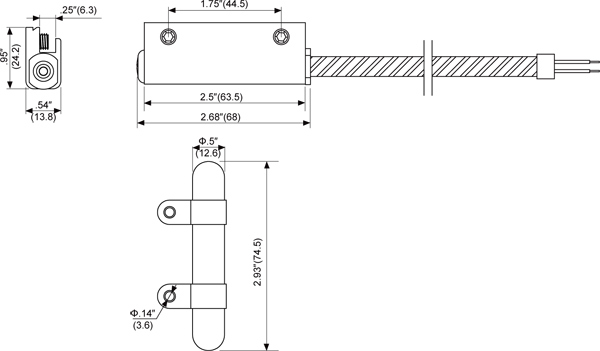

Outline Dimensions Unit: inch(mm)

MET-CDS

MET-CDS

PDF Document Installation Instructions


PDF Document
