MET-200

MET-200MET-202C AR-WP18 (Water Resistant – SPDT)

2″L×.74″W×.37″H Surface Mount Armored Commercial Type W/Wire Leads or Armored Cable

Contact Size: 2″L×.74″W×.37″H
(51mm×18.8mm×9.5mm)
Standard Magnet Size: 2″L×.74″W×.37″H
(51mm×18.8mm×9.5mm)
Standard Gap: 1.25″(32mm)
Colors: Aluminum Case
18″(458mm) Armor Cable Standard (MET-200AR)
36″(915mm) Armor Cable Available (MET-200AR 36”)
12″(305mm) 22AWG Leads Standard (MET-200)

  • PDF Document
  • CE
  • RoHS
  • C UL US Listed

Specifications

Scroll or swipe left to right on the table below for more information.
Part NumberGap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
MET-2001.25″(32)CLOSEDNormally
Open
10100AC110/DC1000.5
MET-200 AR1.25″(32)CLOSEDNormally
Open
10100AC110/DC1000.5
MET-201B1.18″(30)OPENNormally
Closed
3100AC30/DC300.2
MET-201B AR1.18″(30)OPENNormally
Closed
3100AC30/DC300.2
MET-202C1.18″(30)SPDTSPDT3100AC30/DC300.2
MET-202C AR1.18″ (30)SPDTSPDT3100AC30/DC300.2
MET-202C AR
-WP18
1.18″ (30)SPDTSPDT3100AC30/DC300.2
MET-204C AR1.18″(30)DPDTDPDT3100AC30/DC300.2

OPERATING TEMPERATURE:-40°C to +60°C


Outline Dimensions Unit: inch(mm)

MET-200 AR/MET-201B AR

MET-200 AR/MET-201B AR

MET-200/MET-201B

MET-200/MET-201B

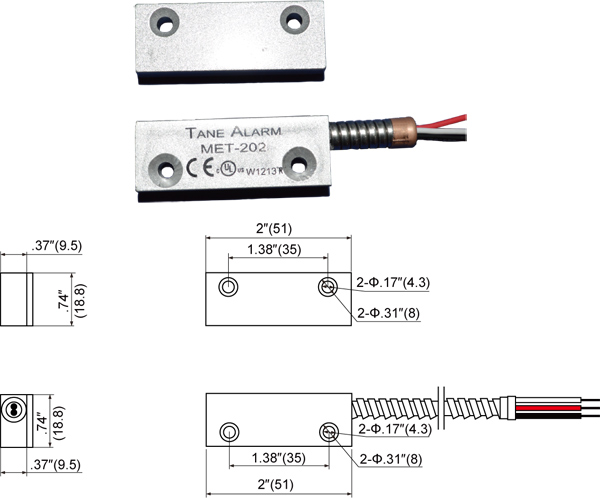

MET-202C AR & MET-202C AR-WP18

MET-202C AR

MET-202C

MET-202C

MET-204C AR

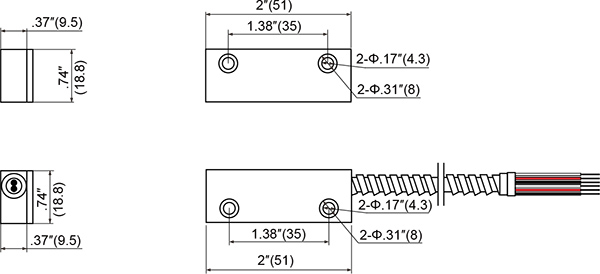

MET-204C AR Outline Diagram

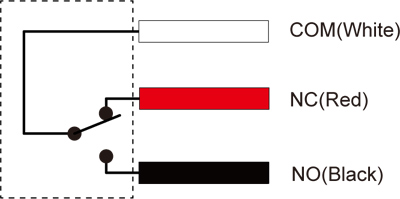

MET-202C & MET-202C AR & MET-202C AR-WP18 Wiring Diagram

MET-202C & MET-202C AR Wiring Diagram

MET-204C AR Wiring Diagram

MET-204C AR Wiring Diagram
