SD-80

SD-801″(25mm) Steel Door Recessed Type

Contact Size: 1″×.84″(25mm×21.3mm)
Standard Magnet Size: 1″×.84″(25mm×21.3mm)
Standard Gap: 1.1″(28mm)
Colors: White, Brown, Black
12″(305mm) 22 AWG Leads Standard
Longer leads available.

  • PDF Document
  • C UL US Listed
  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part NumberGap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
SD-801.1″(28)CLOSEDNormally
Open
10100AC110/DC1000.5
SD-811.1″(28)OPENNormally
Closed
3100AC30/DC300.2
*SD-80 WG1.26″(32)CLOSEDNormally
Open
10100AC110/DC1000.5
*SD-821.1″(28)SPDTSPDT3100AC30/DC300.2
*SD-84.75″(19)DPDTDPDT3100AC30/DC300.2

OPERATING TEMPERATURE:-40°C to +60°C

*Not UL Listed

Outline Dimensions Unit: inch(mm)

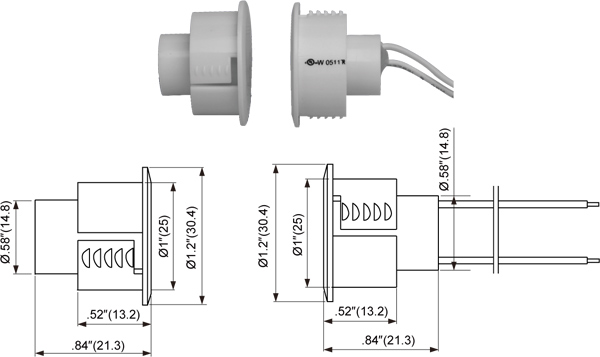

SD-80/SD-81

SD-80/SD-81B

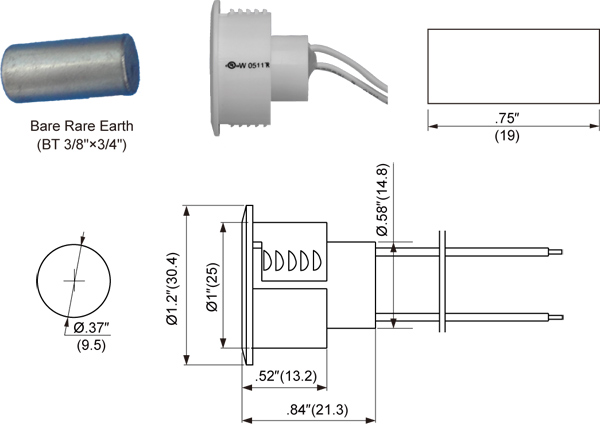

SD-80 WG

SD-80 WG

SD-82

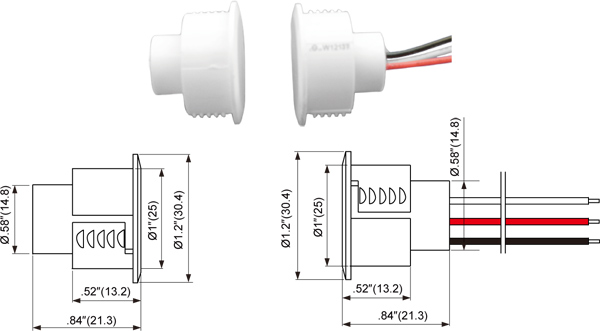

SD-82C

SD-84

SD-84C

Wiring Diagram

SD-82

SD-82C

SD-84

SD-84C

PDF Document Installation Instructions


PDF Document
