FM-102

FM-1021.32″L×.53″W×.3″H Side Lead Surface Mount Type

Contact Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
Standard Magnet Size: 1.32″L×.53″W×.3″H (33.6mm×13.5mm×7.5mm)
Standard Gap: .83″(21mm)
Colors: White, Brown, Gray, Tan, Black
12″(305mm) 22 AWG Leads Standard
Longer leads available.

  • PDF Document
  • C UL US Listed
  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part NumberGap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
FM-102.83″(21)CLOSEDNormally
Open
10100AC110/DC1000.5
FM-103B.67″(17)OPENNormally
Closed
3100AC30/DC300.2
FM-104C.67″(17)SPDTSPDT3100AC30/DC300.2

OPERATING TEMPERATURE:-40°C to +60°C


Outline Dimensions Unit: inch(mm)

FM-102/FM-103B

FM-102/FM-103B

FM-104C

FM-104C

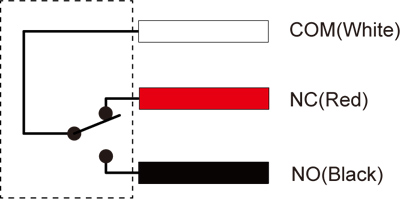

FM-104C Wiring Diagram

FM-104C-Wiring-Diagram

PDF Document Installation Instructions


PDF Document
