TANE-60 QC

TANE-60 QC2″L×.37″W×.28″H Surface Mount Quick Connect Type (with Super Stick adhesive tape)

Contact Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
Standard Magnet Size: 2″L×.37″W×.28″H (50.8mm×9.5mm×7.1mm)
Standard Gap: .71″(18mm)
Colors: White, Brown, Gray, Tan, Black

  • PDF Document
  • C UL US Listed
  • CE
  • RoHS

Specifications

Scroll or swipe left to right on the table below for more information.
Part NumberGap
Inch (mm)
Loop
Open/Closed
Reed
Form
Max. Contact
Rating (W)
Max. Initial Contact
Resistance (mΩ)
Max. Switching
Voltage (V)
Max. Switching
Current (A)
TANE-60 QC.71″(18)CLOSEDNormally
Open
10100AC110/DC1000.5
*TANE-61B QC.43″(11)OPENNormally
Closed
3100AC30/DC300.2
*TANE-60 QC
WG
1.26″(32)CLOSEDNormally
Open
10100AC110/DC1000.5

OPERATING TEMPERATURE:-40°C to +60°C

*Not UL Listed

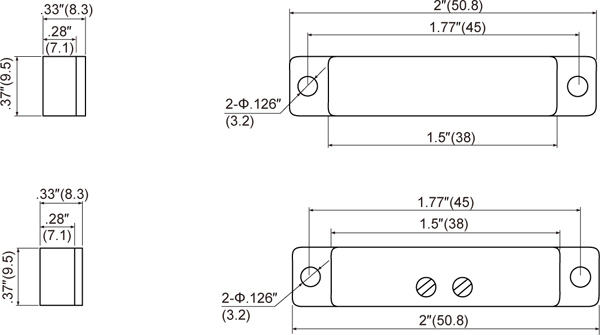

Outline Dimensions Unit: inch(mm)

TANE-60 QC/TANE-61B QC

TANE-60 QC/TANE-61B QC

PDF Document Installation Instructions


PDF Document
